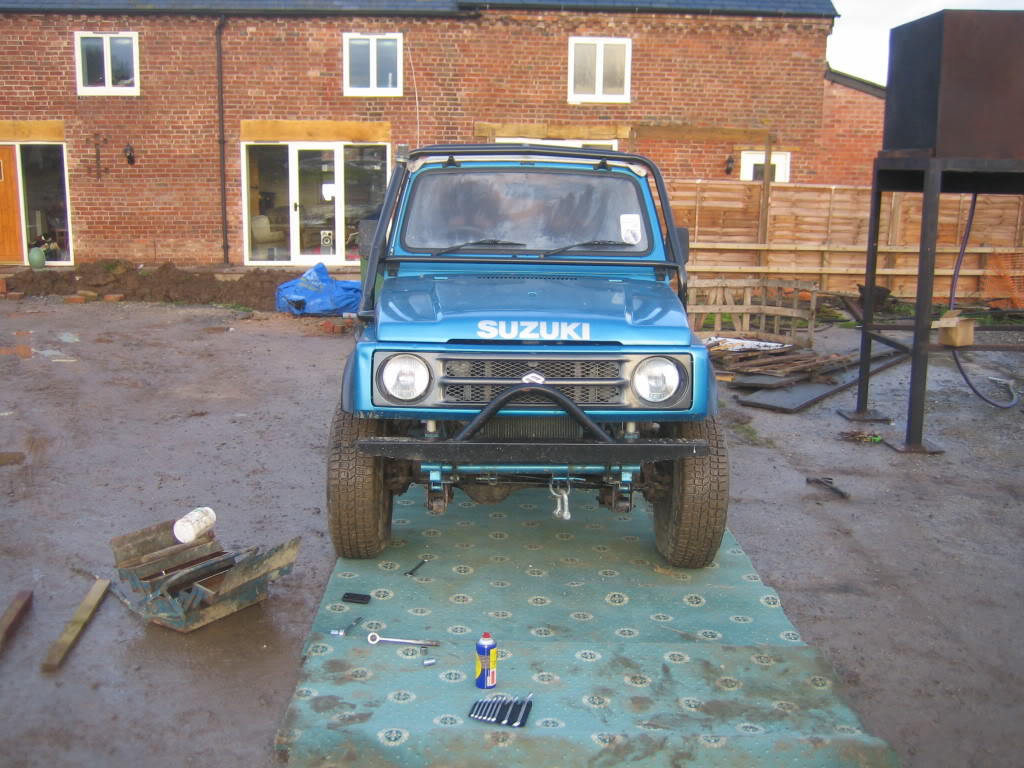

First off park the truck in a good position.

Suzuki Club UK - SCUK - Fitting Lift Spring

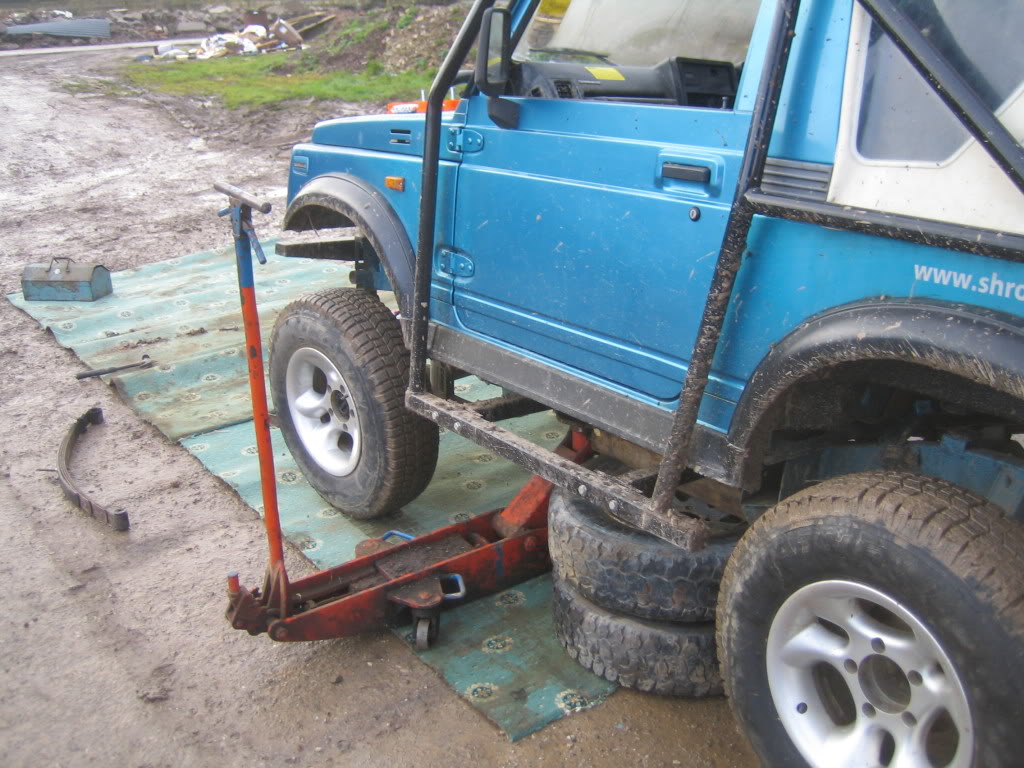

Slacken all of the bolts you are going to be undoing. (4x U-Bolts 14mm, NOTE sj410 are 12/10mm 4x Shackle bolts 14mm, 2x rear spring bolts 17mm) And jack the chasis up and sit it on blocks.

Suzuki Club UK - SCUK - Fitting Lift Spring

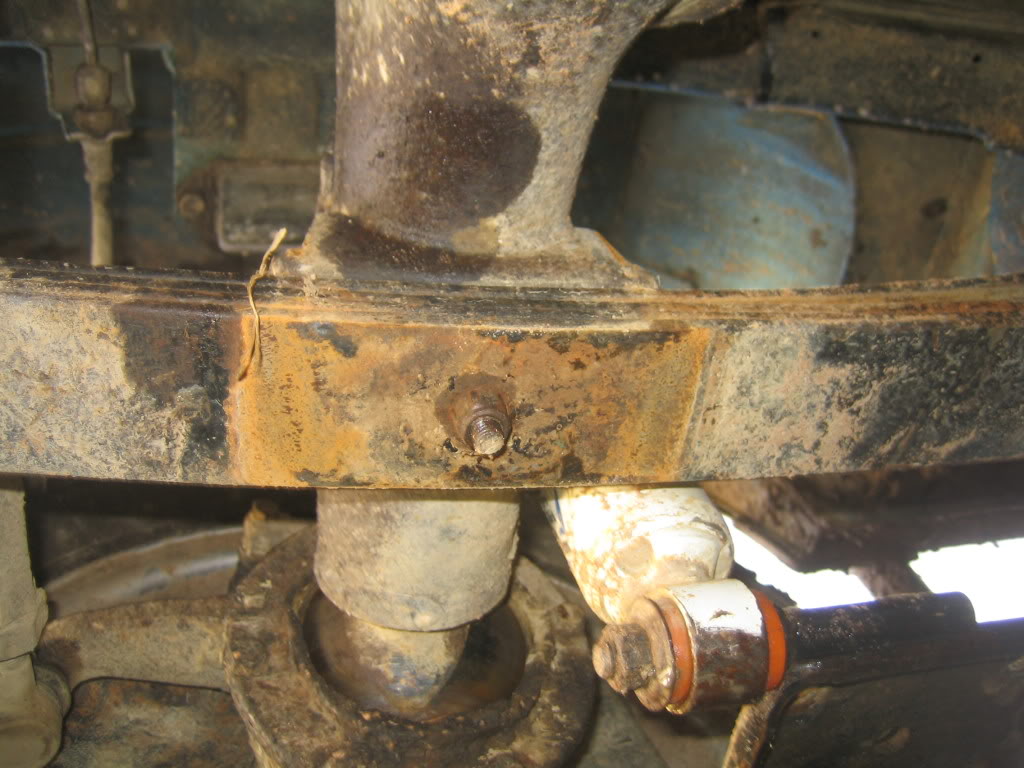

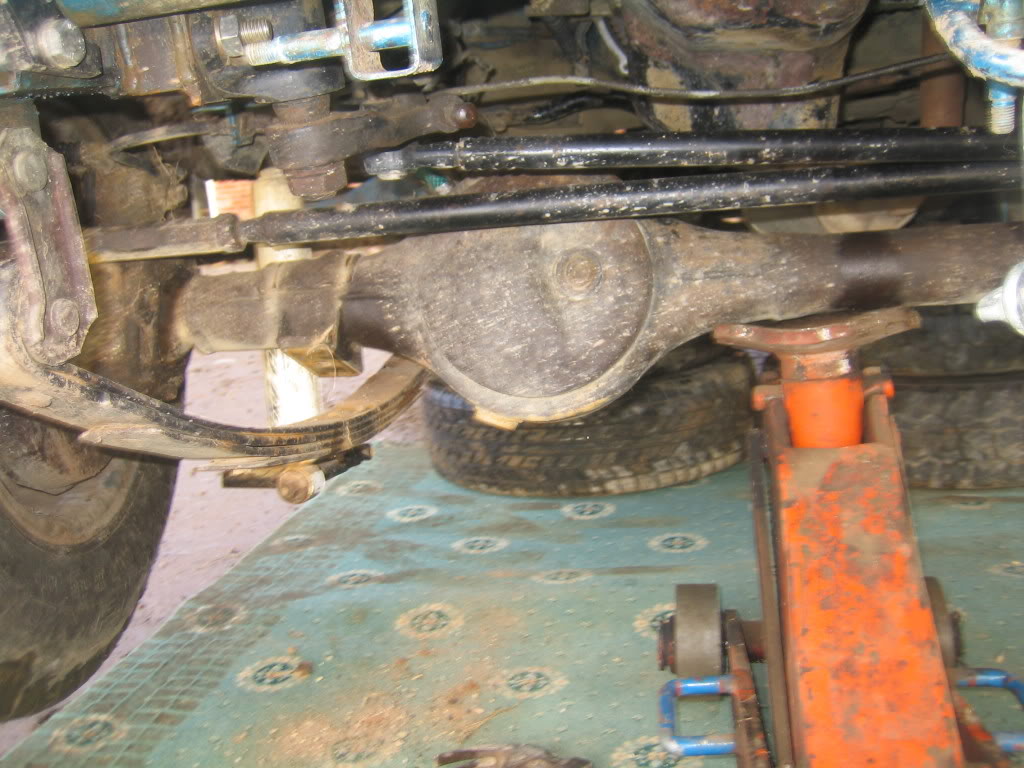

Undo the U bolts and remove, followed by the plate that holds the spring onto the axel also the shock is mounted to this plate. Once this is out of the way you will be left with this.

Suzuki Club UK - SCUK - Fitting Lift Spring

Repeat on the other side then jack the axel up so no weight is on the springs.

Suzuki Club UK - SCUK - Fitting Lift Spring

Once that is done undo the front shackle and remove and allow the spring to drop right down

Suzuki Club UK - SCUK - Fitting Lift Spring

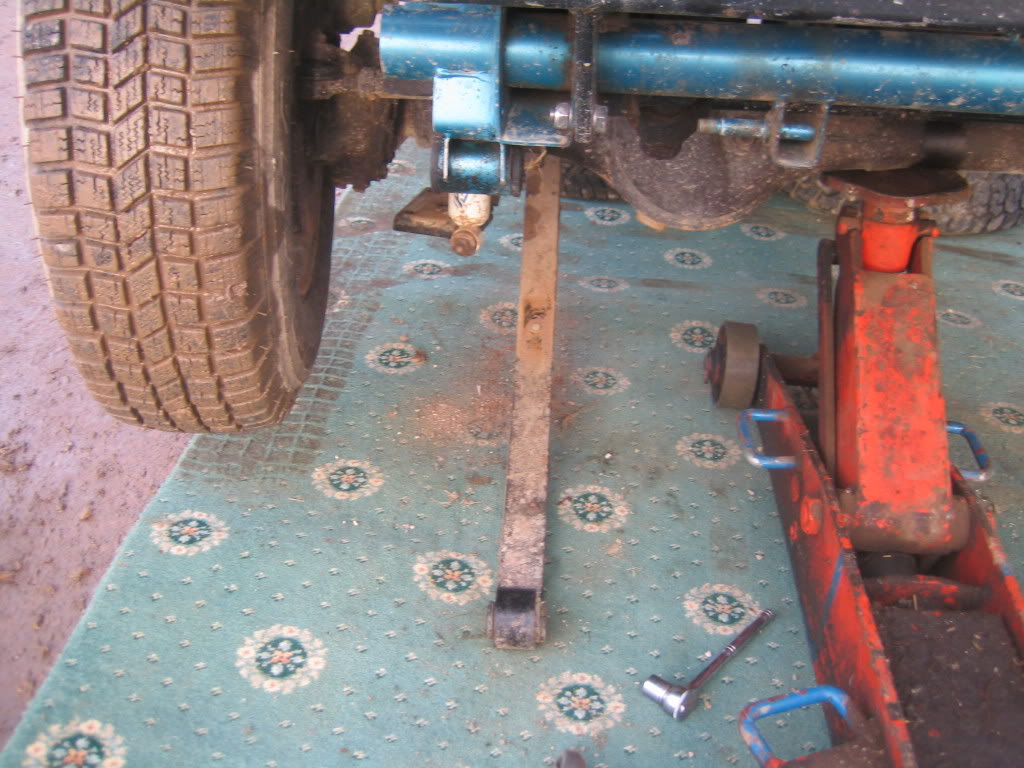

Followed by the rear bolt so the entire spring falls down.

Suzuki Club UK - SCUK - Fitting Lift Spring

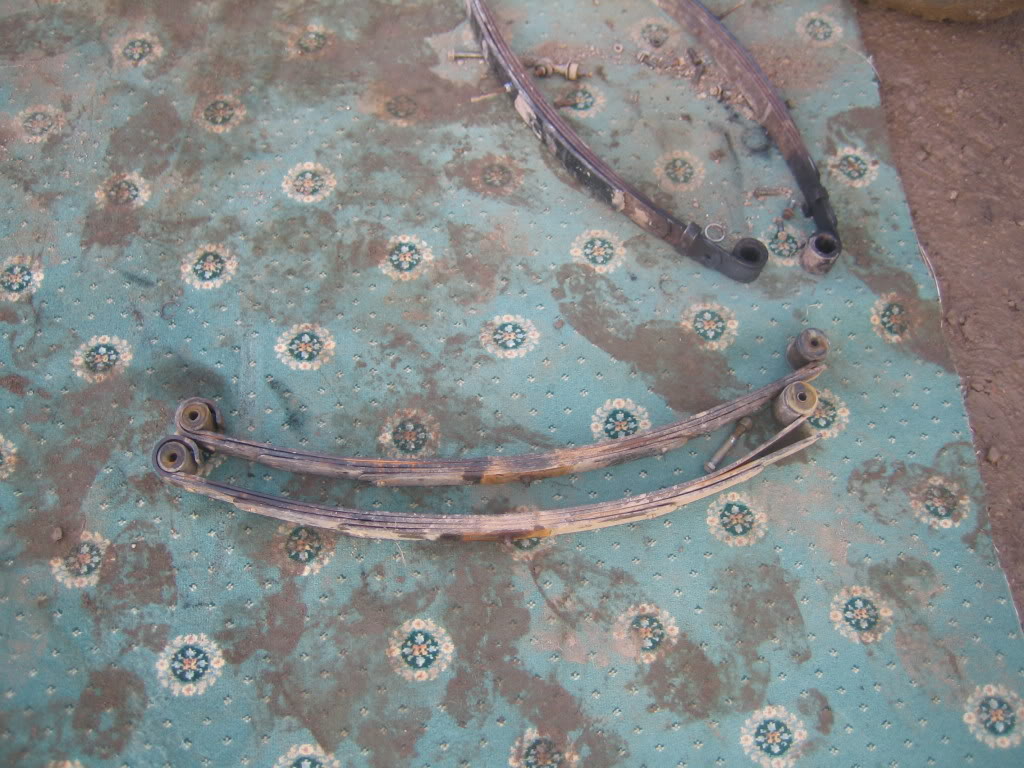

Do that on both sides and you will be left with the 2 old springs.

Suzuki Club UK - SCUK - Fitting Lift Spring

Im my case the springs are actually reclamed standard springs with the Add-a-leaf fitted to the spring pack. Now these springs are fitted with completely shot bushes, and are unfit for re use.

Suzuki Club UK - SCUK - Fitting Lift Spring

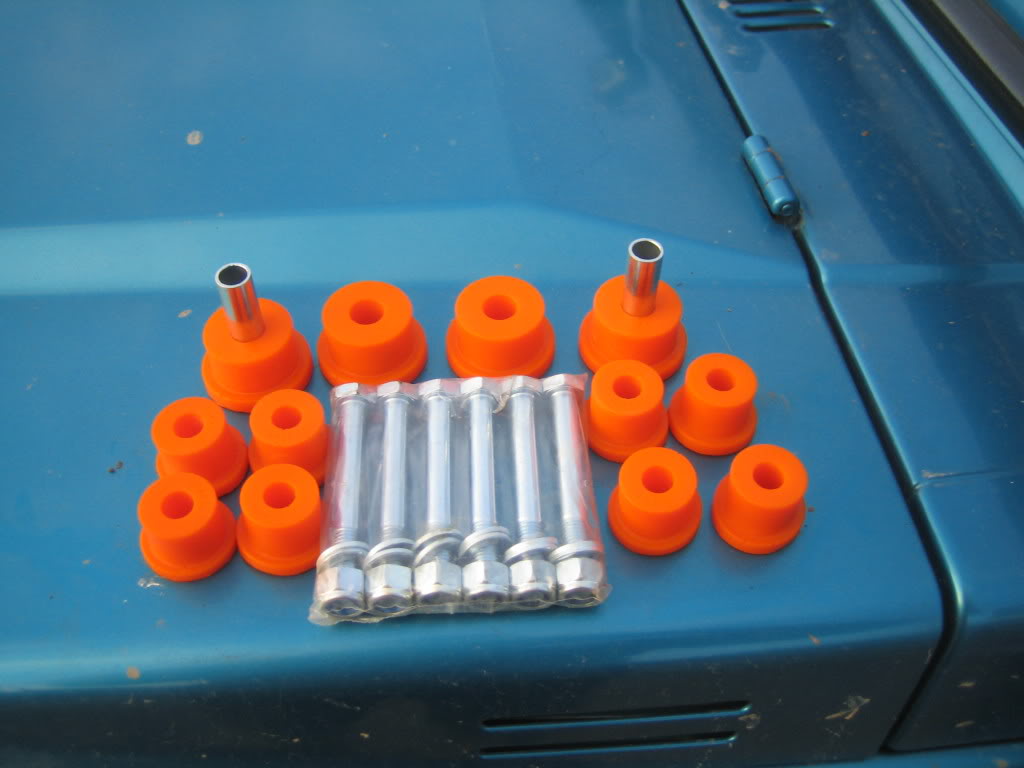

So i have a new set of bushes from Bits4Vits

Suzuki Club UK - SCUK - Fitting Lift Spring

First off i need to remove the old bushes.One hell of a job without a press ect, but i had a cunning plan, and since we arnt going to reuse the old ones why not????Take a metal barrel or similar

Suzuki Club UK - SCUK - Fitting Lift Spring

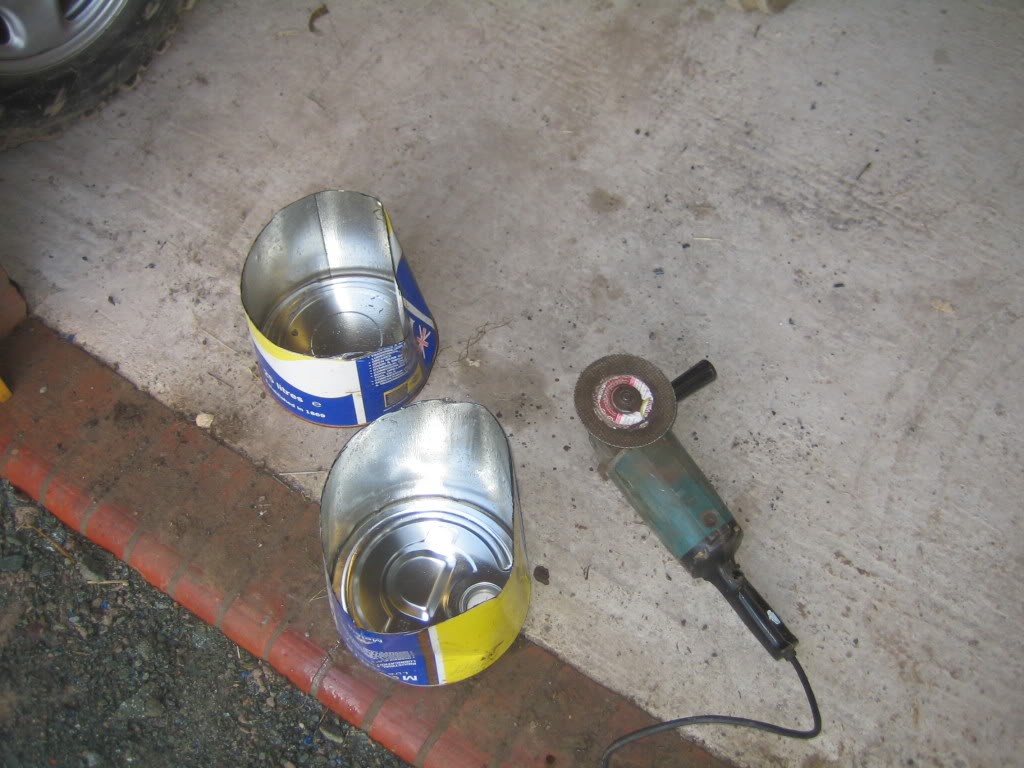

Cut it in half, (mind sharp edges)

Suzuki Club UK - SCUK - Fitting Lift Spring

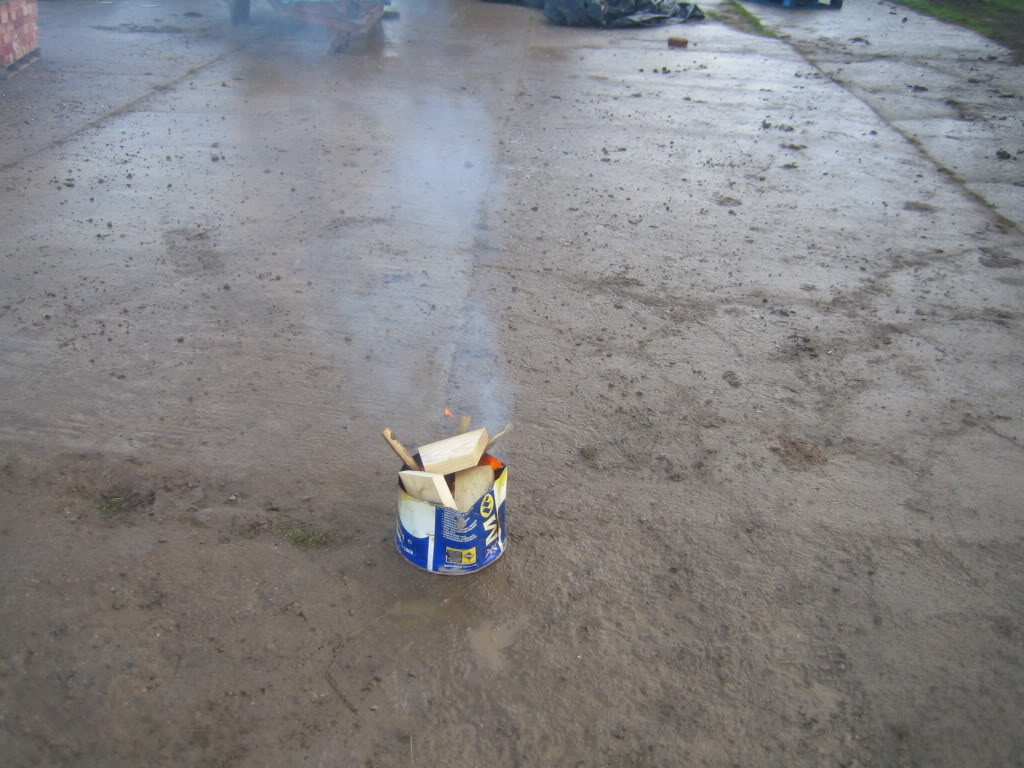

Punch some holes in the bottom and sides of it and start a fire!

Suzuki Club UK - SCUK - Fitting Lift Spring

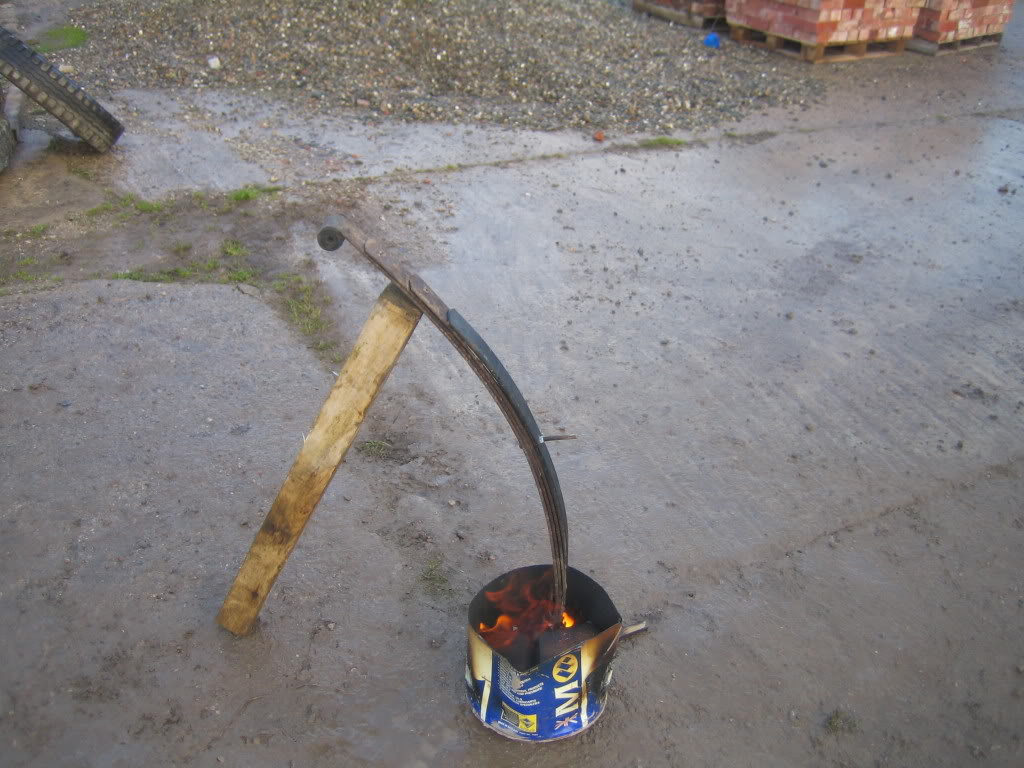

One the fire has established itself, chuck the end of the spring in, and go for a cuppa.

Suzuki Club UK - SCUK - Fitting Lift Spring

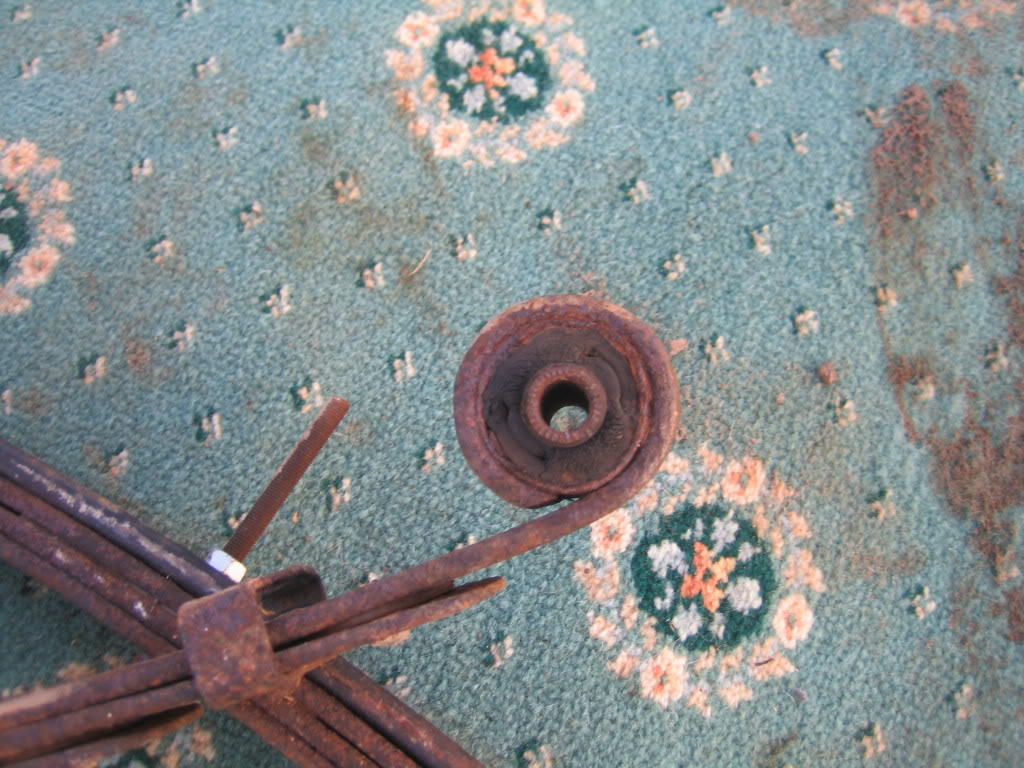

Once you have come back, the rubber should be well alight and will leave you with this

Suzuki Club UK - SCUK - Fitting Lift Spring

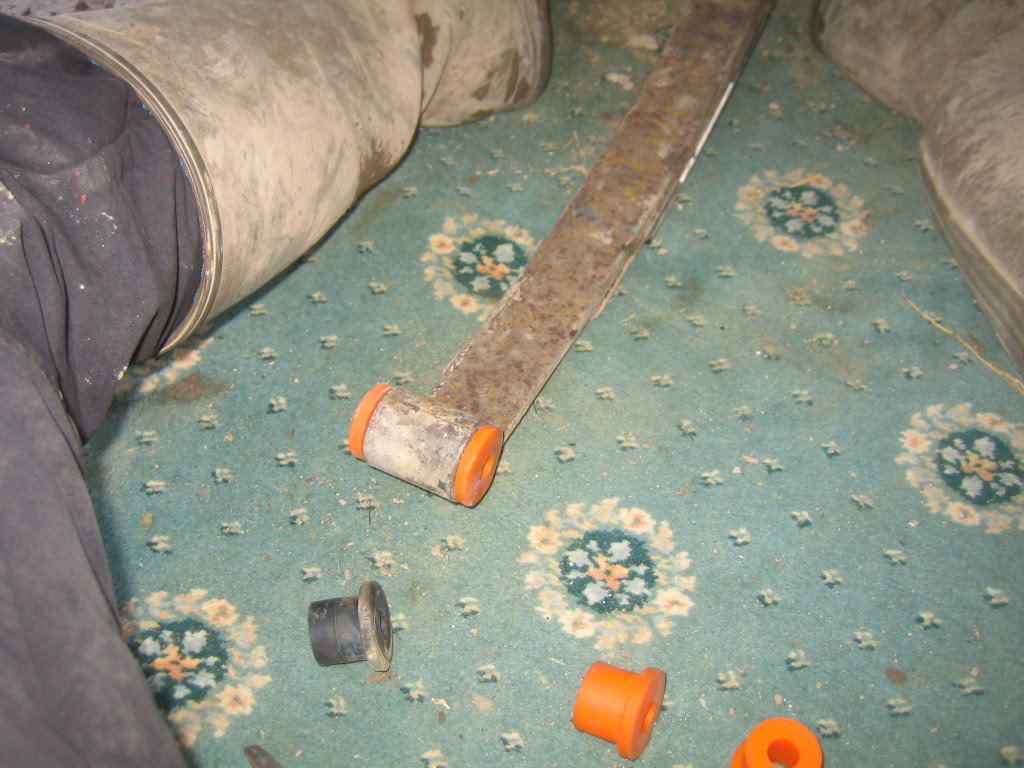

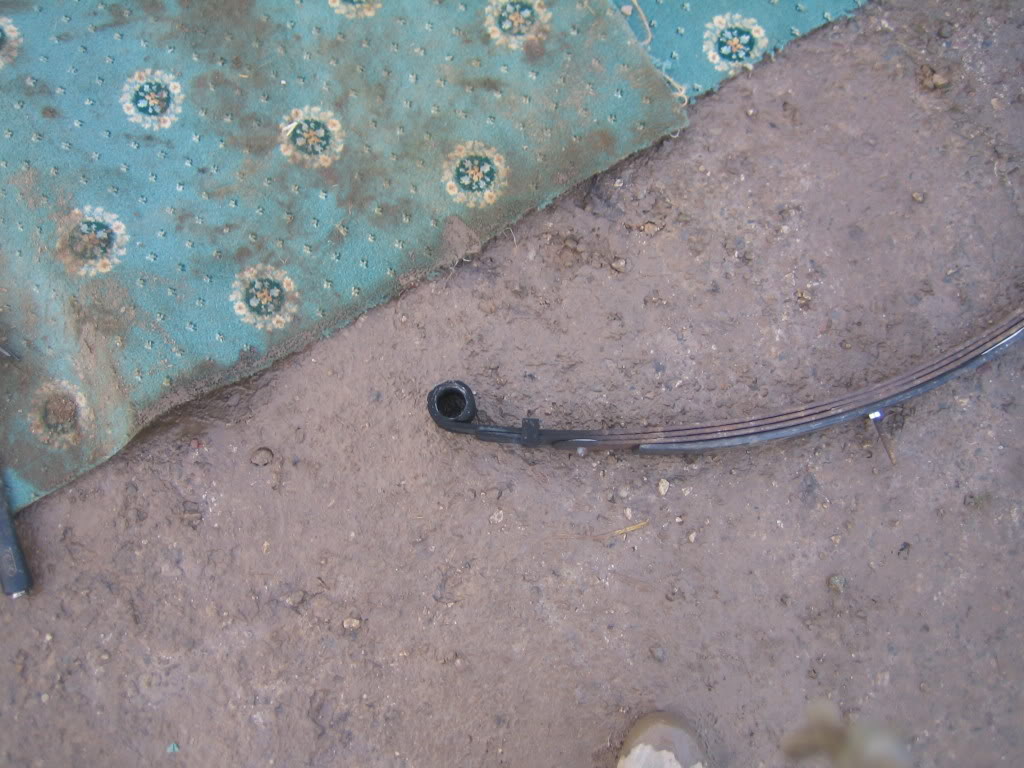

Leave it to cool and start refitting the new bushes.

Suzuki Club UK - SCUK - Fitting Lift Spring

I tapped mine in with a hammer using the clock face method

Suzuki Club UK - SCUK - Fitting Lift Spring

After that fit the rear of the spring, and do the bolt up finger tight

Suzuki Club UK - SCUK - Fitting Lift Spring

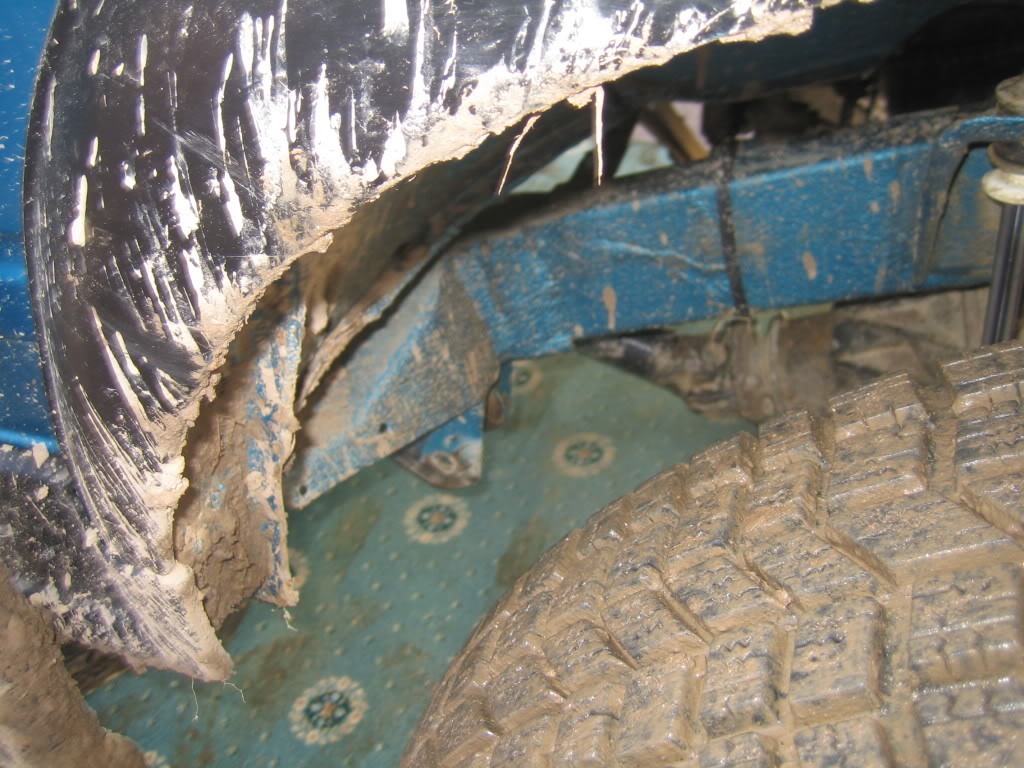

With that done, pop the old bushes out of the front of the chasis and pop the new ones in

Suzuki Club UK - SCUK - Fitting Lift Spring

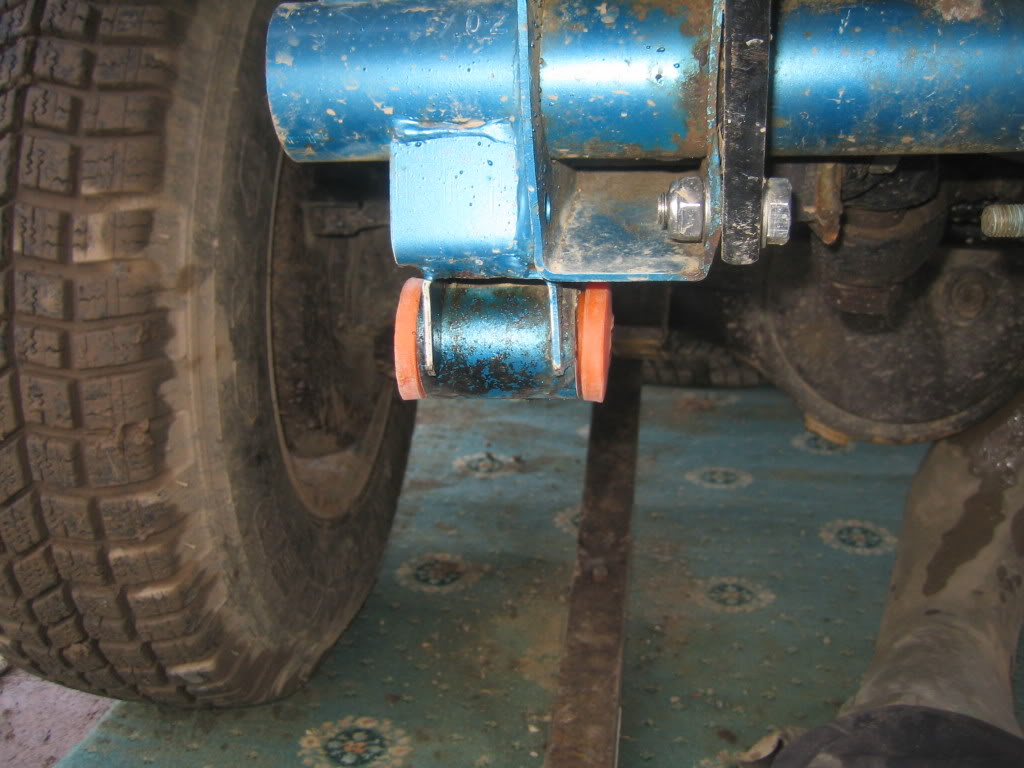

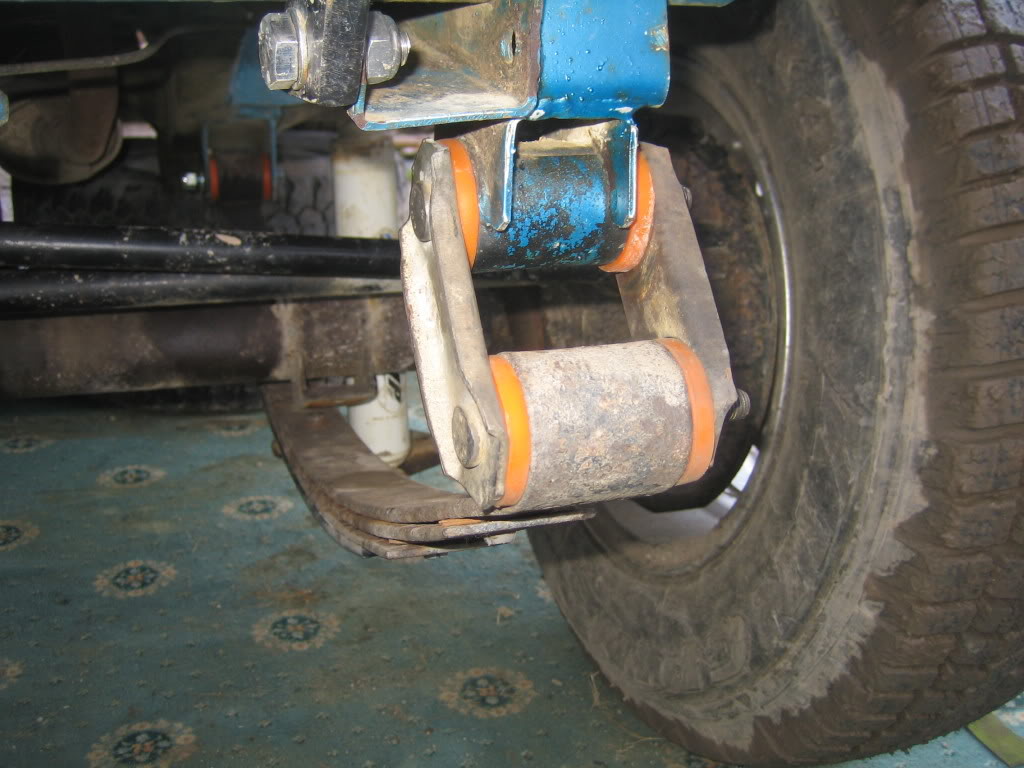

Once thats done, pull the spring up and refit the shackle

Suzuki Club UK - SCUK - Fitting Lift Spring

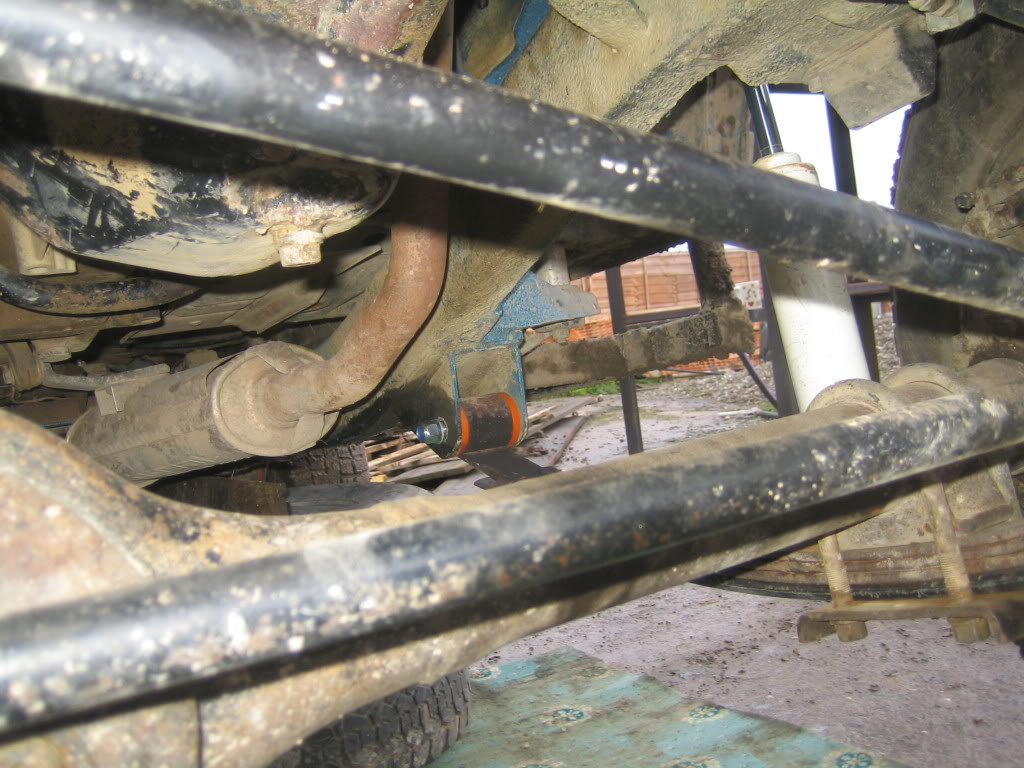

With both sides done, all finger tight, we can position the axel back in place.Get the axel back into its postion and refit the U bolts, and tighten up finger tight

Suzuki Club UK - SCUK - Fitting Lift Spring Suzuki Club UK - SCUK - Fitting Lift Spring

With that start to tighten up all of the bolts

Suzuki Club UK - SCUK - Fitting Lift Spring Suzuki Club UK - SCUK - Fitting Lift Spring

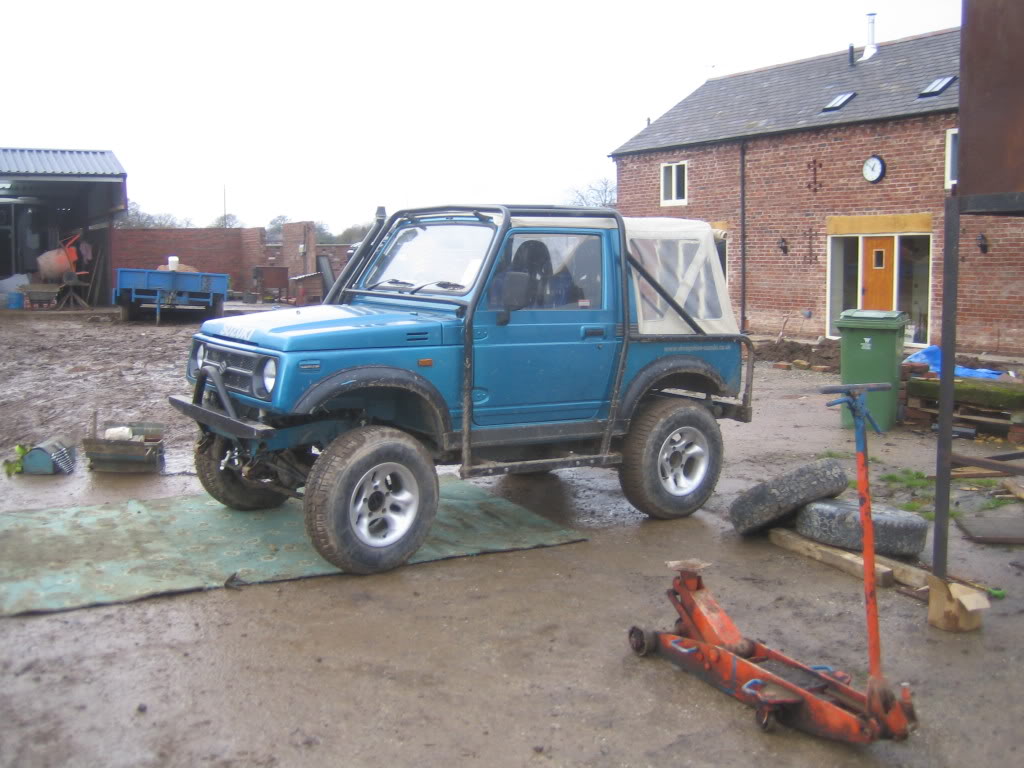

After that is all done at tightened up to the correct torque settings, take the jeep of the stands, stand back and admire.

Torque Lbs-Ft
Leaf spring U-bolt nuts 44 to 58
Leaf spring shackle pin nut 22 to 40
Leaf spring eye-to-frame bolt 33 to 50

Before

Suzuki Club UK - SCUK - Fitting Lift Spring

After

Suzuki Club UK - SCUK - Fitting Lift Spring

After its all down and you have taken it for a drive, check all the bolts again, re torque, and job done!
